QSH6018-65-28-210 -

Stepper motor 8.0 mm 2.8 A 2.8 A 1.8 ° 2.1 Nm, QSH6018-65-28-210, Trinamic

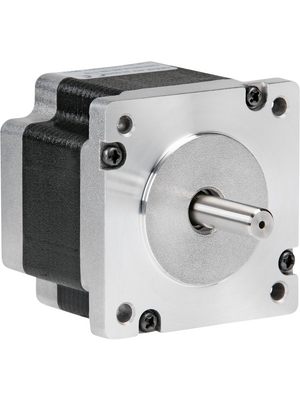

Trinamic QSH6018-65-28-210
声明:图片仅供参考,请以实物为准!
制造商产品编号:
QSH6018-65-28-210
仓库库存编号:
154-22-354
技术数据表:
View QSH6018-65-28-210 Datasheet Datasheet
订购热线: 400-900-3095  0755-21000796, QQ:800152669, Email:sales@szcwdz.com
由于产品数据库庞大,部分产品信息可能未能及时更新,下单前请与销售人员确认好实时在库数量,谢谢合作!

QSH6018-65-28-210技术参数

Shaft ? 8.0 mm
Length 65 mm
Rated current 2.8 A
Phase current 2.8 A
Step angle 1.8 °
Holding torque 2.1 Nm

QSH6018-65-28-210产品信息

Operating temperature -20...+50 °C
Dimensions L x W x H 65 x 60.5 x 60.5 mm
Length, shaft 25 mm
Flange size 60.5 mm(NEMA 24)
Related Products: Stepper motor | Stepper motor with controller 5 mm 0.49 Nm | Hybrid stepper motor 5 mm 0.1 Nm 750 mA 1.8 ° | Stepper motor unit 8 mm 1.8 ° 2.10 Nm | Hybrid stepper motor 5 mm 0.1 Nm 550 mA 1.8 °
Related Categories: Stepper Motors & Servo Drives | Motion & Drives | Drivers | Modules | Direct Current Motors
Related Manufacturers: Siemens | Eaton | Schneider Electric | Mitsubishi Electric | Micro Motors
电话:400-900-3095
QQ:800152669

QSH6018-65-28-210Family Information

  • NEMA 23 compatible, NEMA 24 mounting configuration
  • Axis with D-cut shape
  • Optimized for microstep operations
  • Optimum fit for TMC239 / TMC249 based driver circuits
  • Up to 84 V operating voltage
  • 4 wire connection
  • Neodymium magnets for maximum torque

QSH6018-65-28-210产地与重量

Country of origin Italy (IT)
Manufacturer Trinamic
Gross weight (incl. package) 1038.0 Gram
Dimensions (incl. package) 80 x 70 x 50 MM
Customs number 8501109990
UNSPSC (v5.03) 26101614
