PD60-3-1160-TMCL -

Stepper motor unit 8 mm 1.8 ° 2.10 Nm, PD60-3-1160-TMCL, Trinamic

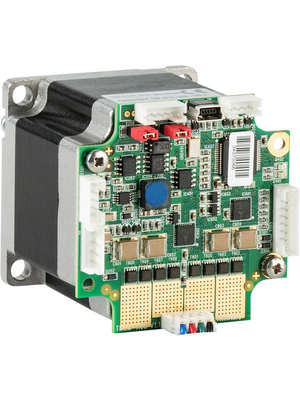

Trinamic PD60-3-1160-TMCL
声明:图片仅供参考,请以实物为准!
制造商产品编号:
PD60-3-1160-TMCL
仓库库存编号:
154-22-028
技术数据表:
View PD60-3-1160-TMCL Datasheet Datasheet
订购热线: 400-900-3095  0755-21000796, QQ:800152669, Email:sales@szcwdz.com
由于产品数据库庞大,部分产品信息可能未能及时更新,下单前请与销售人员确认好实时在库数量,谢谢合作!

PD60-3-1160-TMCL技术参数

Shaft ? 8 mm
Length 60 mm
Step angle 1.8 °
Holding torque 2.10 Nm

PD60-3-1160-TMCL产品信息

Dimensions L x W x H 60 x 60 mm
Operating voltage 9...51 VDC
Length, shaft 24 mm
Flange size 60 mm
Overall length 82 mm
Microstep resolution Up to 256 x

PD60-3-1160-TMCL配套产品

  • 参考图片
  • 制造商 / 说明 / 型号 / 仓库库存编号
  • PDF
  • 操作
Related Categories: Stepper Motors & Servo Drives | Motion & Drives | Drivers | Modules | Direct Current Motors
Related Products: Stepper motor | Stepper motor with controller 5 mm 0.49 Nm | Hybrid stepper motor 5 mm 0.1 Nm 750 mA 1.8 ° | Hybrid stepper motor 5 mm 0.1 Nm 550 mA 1.8 ° | Hybrid stepper motor 5 mm 0.4 Nm 800 mA 1.8 °
Related Manufacturers: Siemens | Eaton | Schneider Electric | Mitsubishi Electric | Micro Motors
电话:400-900-3095
QQ:800152669

PD60-3-1160-TMCLFamily Information

  • Unit comprising of two phase stepper motor (NEMA 23/24) and electronic
  • Operation in host and standalone mode
  • Programming in TMCL? (Trinamic Motion Control Language)
  • Program memory for up to 2048 TMCL commands
  • Programming and controlling via USB, RS485 and CAN
  • stallGuard2? and coolStep? for sensorless load angle detection and current control
  • sensOstep? encoder for position detection (1024 counts/revolution)
  • Step / direction input (opto-isolated)
  • 3 reference- / limit switch inputs and 2 digital outputs (24 V, open drain)
  • 2 inputs, analogue (0...10 V) or digital (5 V / 24 V) interpretable
  • ABN encoder interface

PD60-3-1160-TMCL产地与重量

Country of origin Germany (DE)
Manufacturer Trinamic
Gross weight (incl. package) 1170.0 Gram
Dimensions (incl. package) 160 x 115 x 75 MM
Customs number 8501109990
UNSPSC (v5.03) 26101614
