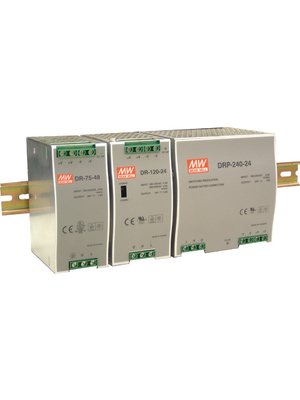

169-77-078,Switched-mode power supply / 5 A, DR-120-24, Mean Well
Datasheet
| Output voltage 1, nominal | 24 VDC |
| Output current 1 max. | 5 A |
| Power | 120 W |
| Efficiency | 84 % |
| Input voltage, nominal | 100 / 240 VAC |
| Phases | 1 |
| Outputs | 1 |
| Width | 65.5 mm |
| Depth | 100 mm |
| Height | 125.2 mm |
| Output voltage 1 min. | 24 VDC |
| Output voltage 1 max. | 28 VDC |
| Input voltage, AC min. | 88 VAC |
| Input voltage, AC max. | 264 VAC |
| Input voltage, DC min. | 248 VDC |
| Input voltage, DC max. | 370 VDC |
| Operating temperature min. | -10 °C |
| Operating temperature max. | +60 °C |
| Input frequency min. | 47 Hz |
| Input frequency max. | 63 Hz |
| Derating | 2.6% / °C as of 45 °C |
