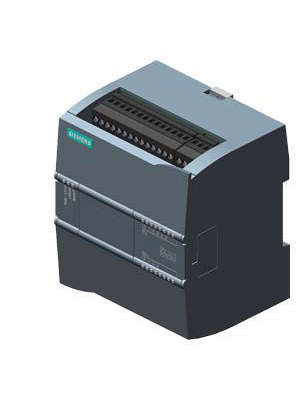

125-71-216,S7-1200 CPU 1211C SIMATIC S7-1200, 6 DI, 2 AI (0...10 VDC), 3 HS, 4 RO, 6ES7211-1HE31-0XB0, Siemens
Datasheet
| Inputs | 6 digital, 2 analogue (0...10 VDC), 3 high speed counter |
| Outputs | 4 relay |
| Operating voltage | 24 VDC |
| Operating temperature | 0...+55 °C |
| Series | SIMATIC S7-1200 |
| No. of digital inputs | 6 |
| No. of digital inputs, usable by analogue | 0 |
| No. of analogue inputs | 2 |
| No. of high speed counter | 3 |
| No. of relay outputs | 4 |
| No. of SSR outputs | 0 |
| No. of transistor outputs | 0 |
| No. of analogue outputs | 0 |
| No. of impulse outputs | 0 |
| Switching capacity | 2 A |
| Communications interface | RJ45 built-in, RS 232 and RS 485 optional |
| Processing time per binary statement | 0.1 μs |
| Internal program memory | 1 MB |
| Data memory | 30 kByte |
| Data buffer | No time limit |
| Protection rating | IP 20 |
| Analogue inputs | 0...10 VDC |
| Load current | 2 A |
| Real-time clock | Yes, with daylight saving time changeover |
| Dimensions W x H x D | 90 x 100 x 75 mm |
| Inputs/outputs, max. | 14 DI/DQ, 3 AI/AQ |
| Signal module max | 0 |
| Description | Relay |
