204763 -

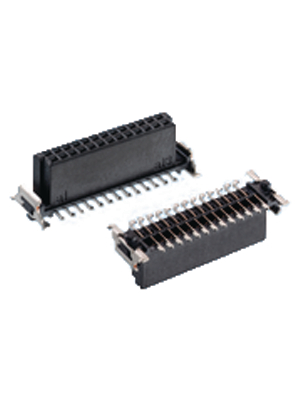

Pin header 26P Female 26, 204763, Erni

Erni 204763
声明：图片仅供参考，请以实物为准！
制造商：
Erni Erni
制造商产品编号：
204763
仓库库存编号：
110-68-510
技术数据表：
View 204763 Datasheet Datasheet
订购热线： 400-900-3095  0755-21000796, QQ:800152669, Email:sales@szcwdz.com
由于产品数据库庞大，部分产品信息可能未能及时更新，下单前请与销售人员确认好实时在库数量，谢谢合作！

204763技术参数

Pitch 1.27 mm
Poles 26
Poles 26
Lines 2
Connector Termination SMD
Series SMC
Contact material Gold-plated copper
Connector Design Double row
straight
Gender of contacts Female

204763产品信息

Rated current 1.6 A
Max. temperature +125 °C
Housing Material Liquid-crystal polymer (LCP)
Combustibility class UL 94 V-0
Height index 13.65
Temperature range -55...+125 °C
Related Categories: Industrial Connectors | Board & Flat Cable Connectors | D-Sub Connectors | Enclosures | PCB Boards
Related Products: Crimp socket Female 30...22 AWG | Crimp contact Female 22...18 AWG | Crimp socket Female 24...20 AWG | Crimp socket 3 A Female 26...22 AWG | PCB pin header Pitch2 mm Poles 2 Single row / straight / with shroud PH
Related Manufacturers: TE Connectivity | Molex | Hammond | Würth Elektronik | Fibox
电话:400-900-3095
QQ:800152669

204763Family Information

  • Flexible board-to-board distance of 8...20 mm
  • Centering pin for precise placement onto the circuit board
  • Fully automatic assembly

204763产地与重量

Country of origin Germany (DE)
Manufacturer Erni
Gross weight (incl. package) 1.0 Gram
Dimensions (incl. package) 1 x 1 x 1 MM
Customs number 8536693000
