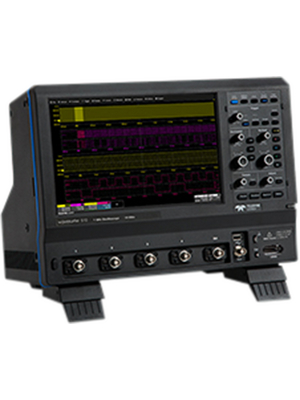

176-26-510,Oscilloscope 4x1000 MHz 5 GS/s, WAVESURFER 104MXS-B, Teledyne LeCroy
Datasheet
| Series | WaveSurfer |
| Channel analog | 4 |
| Channel digital (MSO) | 0 |
| Bandwidth | 1000 MHz |
| Sample rate, single-shot | 5 GS/s |
| Memory | 12.5 Mpts/ch |
| Display |
10.4" TFT-LCD
Touchscreen |
| Trigger |
Edge
Logic Runt |
| Sample rate, repetitive | 50 GS/s |
| Rise time | 0.3 ns |
| Vertical sensitivity/div | 2 mV...10 V/div |
| Time basis | 0.2 ns...1000 s/div |
| Vertical resolution | 8 Bit |
| Mathematical functions |
Add
Subtract Multiply Divide FFT Advanced Math Differentiate Integrate |
| Input coupling |
AC
DC GND |
| Input impedance Ohm |
1
MOhm
50 MOhm |
| Dimensions L x W x H | 340 x 260 x 152 mm |
| Weight | 6.95 kg |
| Delivery with |
1 Probes/channel
Manual Protection Cap Calibration certificate |
