G2LM20 24VAC -

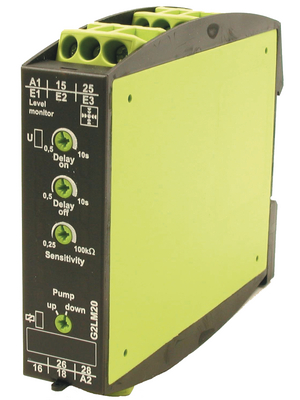

Level Monitoring Relay, G2LM20 24VAC, Tele

Tele G2LM20 24VAC
声明:图片仅供参考,请以实物为准!
制造商:
Tele Tele
制造商产品编号:
G2LM20 24VAC
仓库库存编号:
137-54-807
技术数据表:
View G2LM20 24VAC Datasheet Datasheet
订购热线: 400-900-3095  0755-21000796, QQ:800152669, Email:sales@szcwdz.com
由于产品数据库庞大,部分产品信息可能未能及时更新,下单前请与销售人员确认好实时在库数量,谢谢合作!

G2LM20 24VAC技术参数

Operating voltage 24 VAC
Rated output 250 VAC / 5 A

G2LM20 24VAC产品信息

Output contact 2 change-over (CO)
Sensitivity 0.25...100 kOhm
Assembly type DIN-rail
Operating temperature -25...+55 °C
Protection rating IP 40
Dimensions W x H x D 25 x 90 x 108 mm
Description Monitoring relay
Start delay 0.5...10 s
Tripping delay 0.5...10 s

G2LM20 24VAC配套产品

  • 参考图片
  • 制造商 / 说明 / 型号 / 仓库库存编号
  • PDF
  • 操作
电话:400-900-3095
QQ:800152669

G2LM20 24VACFamily Information

Series Description
  • Multi-function fill monitoring of conductive liquids
  • Selectable maximum or minimum monitoring
  • Sensitivity and slow operation and slow release adjustable
  • Secure disconnection of the voltage circuits
  • Probe connection length connectable up to 1000 meters
  • 2 change-over contacts
  • DIN rail mounting
  • Option: sealable covering plate (transparent)

G2LM20 24VAC产地与重量

Country of origin Austria (AT)
Manufacturer Tele
Gross weight (incl. package) 186.0 Gram
Dimensions (incl. package) 125 x 95 x 30 MM
Customs number 8536490099
UNSPSC (v5.03) 30211910
EAN 9008662002548
