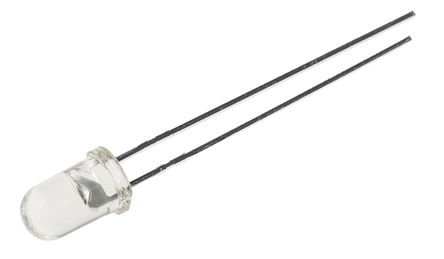

110-97-419,LED 5 mm (T13/4) yellow, HLMP-C315, Broadcom
Datasheet
| Lens size | 5 mm (T1?) |
| Light colour | yellow |
| Transmission angle | 15 ° |
| Case colour | colourless |
| Housing type | clear |
| Peak wave length | 583 nm |
| Luminous intensity max. | 300 mcd |
| Luminous intensity min. | 146 mcd |
| Rated on-state current | 20 mA |
| Conducting-state voltage max. | 2.6 V |
| Conducting-state voltage min. | 2.1 V |
| Luminous intensity | 146...300 mcd |
| Forward voltage | 2.1...2.6 V |
| Operating temperature | -40...+100 °C |
| Dominant wavelength | 585 nm |
