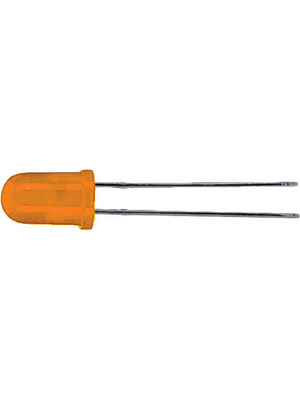

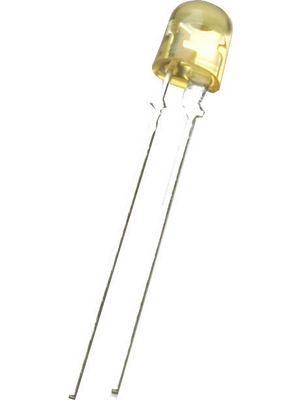

110-97-440,LED 5 mm (T13/4) amber, HLMP-EL3A-WXLDD, Broadcom
Datasheet
| Lens size | 5 mm (T1?) |
| Light colour | amber |
| Transmission angle | 30 ° |
| Case colour | colourless |
| Housing type | clear |
| Peak wave length | 594 nm |
| Luminous intensity max. | 9300 mcd |
| Luminous intensity min. | 5500 mcd |
| Rated on-state current | 20 mA |
| Conducting-state voltage max. | 2.4 V |
| Conducting-state voltage min. | 1.8 V |
| Luminous intensity | 5500...9300 mcd |
| Forward voltage | 1.8...2.4 V |
| Operating temperature | -40...+100 °C |
| Technology | AllnGaP |
| Dominant wavelength | 590 nm |
