300-28-000,Current clamp meter, 600 AAC, 600 ADC, TRMS AC, TESTO 770-3, Testo
Datasheet
| Type of measurement | TRMS AC |
| AAC max. | 600 AAC |
| ADC max. | 600 ADC |
| VAC max. | 600 VAC |
| VDC max. | 600 VDC |
| Max. conductor ? | 30 mm |
| Digits | 6000 |
| Ohm max. | 60 MOhm |
| Safety to EN61010 |
CAT III 1000 V
CAT IV 600 V |
| F max. | 60000 μF |
| Hz max. | 10 kHz |
| W max. | 360 kW |
| °C measurement range | -20...500 °C |
| Bandwidth AAC | 0.4 kHz |
| Bandwidth VAC | 1 kHz |
| Instrument functions |
Analogue bargraph
Backlight Range selection, automatic Range selection, manual |
| Measuring function |
Continuity tester
Diode tester Inrush Hold |
| VAC resolution | 1000 μV |
| VDC resolution | 1000 μV |
| Ohm resolution | 0.1 Ohm |
| F resolution | 0.1 nF |
| Hz resolution | 0.001 Hz |
| W resolution | 1 W |
| Sensor type/thermocouples | K |
| °C resolution | 0.1 °C |
| Interfaces | Bluetooth |
| Dimensions L x W x H | 96 x 243 x 43 mm |
| Weight | 330 g |
| Electrical supply | 3 x LR03/AAA |
| Delivery with |
Battery

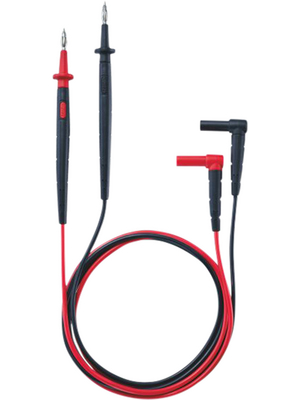

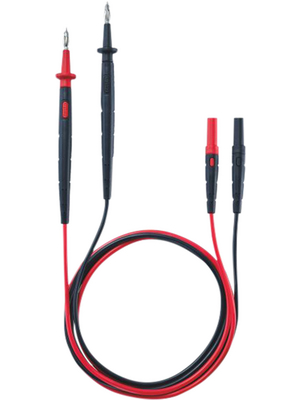

Test lead |
