99-4646-00-06 -

Cable socket, 6-pin Poles 6, 99-4646-00-06, Binder

Binder 99-4646-00-06
声明:图片仅供参考,请以实物为准!
制造商:
Binder Binder
制造商产品编号:
99-4646-00-06
仓库库存编号:
144-03-162
技术数据表:
View 99-4646-00-06 Datasheet Datasheet
订购热线: 400-900-3095  0755-21000796, QQ:800152669, Email:sales@szcwdz.com
由于产品数据库庞大,部分产品信息可能未能及时更新,下单前请与销售人员确认好实时在库数量,谢谢合作!

99-4646-00-06技术参数

Series 623
Poles 6
Connector Design straight
Locking type Screw locking M23 x 1
Nominal current 20 A
Gender of contacts Female

99-4646-00-06产品信息

Termination type Soldering Connection
Connection 2.5 mm2
Cable entry max. 10 mm
Rated voltage 250 VAC
Housing Material Brass (CuZn)
Protection rating IP 67
Contact material CuZn+Au
Shielding shielded
Cable entry 4...10 mm
Temperature range -40...+125 °C

99-4646-00-06您可能还对以下元器件感兴趣

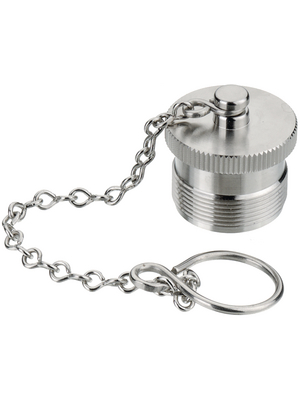

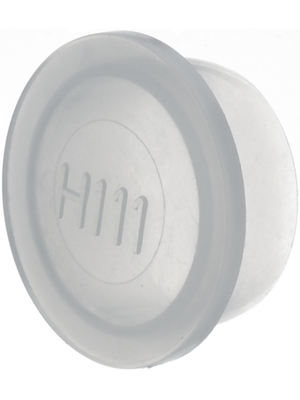

Related Products: Crimp contact female | Crimp contact male | Protective cap | Crimp contact Stamped, Female | Hex nut M8 x 0.5
Related Manufacturers: TE Connectivity | Molex | Amphenol | Würth Elektronik | Souriau
Related Categories: Circular Connectors | Sensor Cables, Distributors & Testers | Industrial Connectors | Connector Tools | Power Supplies
电话:400-900-3095
QQ:800152669

99-4646-00-06Family Information

  • Very sturdy design in IP 67
  • Simple assembly
  • Shield sleeves can be ordered separately
  • Gold-plated contacts

99-4646-00-06产地与重量

Country of origin Germany (DE)
Manufacturer Binder
Gross weight (incl. package) 70.0 Gram
Dimensions (incl. package) 51 x 26 x 26 MM
Customs number 8536699099
UNSPSC (v5.03) 30211814
